Ping restarter
Monitors the functionality of a device over IP (PING/WEB) or serial line (RS-232), automatically restarts it upon failure.
Web watchdog monitors two independent channels. Industrial version.

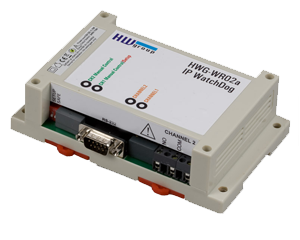

IP WatchDog WR02a (ping restarter) periodically monitors the functionality of a device by transmitting or receiving a specified "I'm alive and OK" signal over IP or RS-232. If the correct reply is not received in time, the device is restarted with a relay.
IP WatchDog can monitor two devices (two independent channels, two 110/230VAC relays). Industrial applications benefit from DIN rail compatibility.
Product Parameters
Product Parameters
- Ethernet: RJ45 (10BASE-T)
- WEB: Built-in web server, manual reset and output control, logging
- Functions: Two channels, independent per-channel monitoring
- Methods of detecting functionality per channel:
- Ping Push: IP WatchDog periodically sends PING requests
- Ping Request: IP WatchDog waits for a PING from a specified IP address
- Web Push: IP WatchDog periodically checks the availability of a given web page (web server)
- Web Request: IP WatchDog waits for a request for its internal WEB page
- RS232 Rx: IP WatchDog waits for a sequence of characters in the RS-232 data stream
- Channel output: DO relay output (NO/NC, 230V/16A AC)
- Manual control of the relay over WWW (with a password) - can be used as a 110V Web relay
- Security ensured with user passwords and a configurable range of allowed IP addresses
- FirmWare update can be performed over the WWW interface
- Log & Time: Automatic time sync over NTP (TIME), event logging
- Installation: Installation in 10 minutes, no software is necessary
- Tip: Outputs can be turned on/off manually over the web interface
- Dimensions: 145x90x45 [mm]
Usage examples
Usage examples
- Operation monitoring / IP restart
- Servers / routers
- IP video cameras
- WiFi links / access points
- Industrial systems
- Connectivity monitoring
- Activation of a back-up link
- Detection of connectivity outage (relay >> horn)
- Monitoring of ADSL and cable modems
- Security and access control systems
