Temperature sensor for very low temperatures

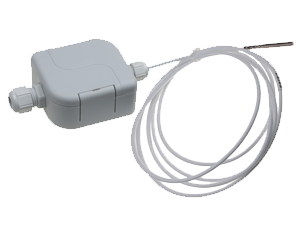

The probe in a stainless steel housing measures temperatures from -190°C to +200°C (-310°F to +392°F), accuracy +-0.2°C (Pt100).Temp-485-Pt100-frost

The RS-485 converter is built into a wall-mountable, IP68 box. Operating temperature is -25°C to +80°C (-13°F to +176°F).

Typical applications include temperature measurement in the pharmaceutical industry or freezing plants.

Environment: Indoor or outdoor use - IP68, wall mount
Supplied probe: External Pt100 sensor for low temperatures (stainless steel housing, 2m cable)
Temperature range of the supplied probe: -190°C to +200°C (-310°F to +392°F) / 2m accuracy +-0.2°C
Operating temperature: The converter works from -25 to +80°C (-13 to +158°F)
Interface: RS-485, terminals
Compatible with: Poseidon 1250 and 2250
Power supply: From the Poseidon (12V), or 8..28VDC
