Sensor for measuring voltage and current

Connects to the RS-485 bus, fits on a DIN rail. Sens-UI features two independent inputs (Ch1, Ch2).

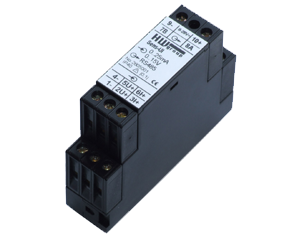

Sens-485-UI

  • Each input can be configured to measure current or voltage.
Environment: Indoor use, DIN rail
Inputs: 2 electrically isolated channels, Ch1 and Ch2
Configuration of inputs: Specified by the ordering number, configurable over RS-485
Input voltage range: 0..15 VDC (0.1V resolution)
Input current range: 0..25mA DC (0.1 mA resolution)
Operating temperature: The converter works from -25 to +70°C (-13 to +158°F)
Interface: RS-485, terminals
Compatible with: Poseidon 1250 and 2250
Power supply: From the Poseidon (12V), or 8..28VDC
